Single Layer Stretch Film Making Machine

Stretch Film Machine

Hot Products

Single Layer Stretch Film Making Machine

Single layer stretch film making machine with following features: one screw, one motor motor,two inverter,simple design, easy operation, low noise, stable running, especially winding part is controlled by PLC touch screen. The machine is equipped with extruder, traction part, leveling part, edge trimming, winding and finished roll automatic changing etc.

Product information

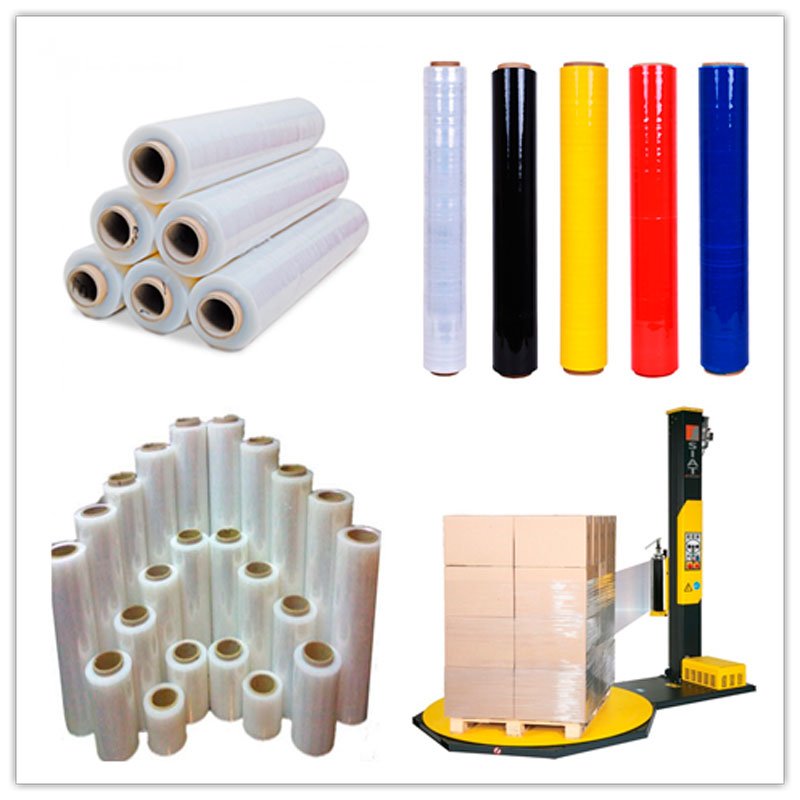

Stretch film machine also called Cast stretch film machine,machine use LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing,pallet packing,carton packing,building material packing, auto parts packing, hardware parts packing etc.

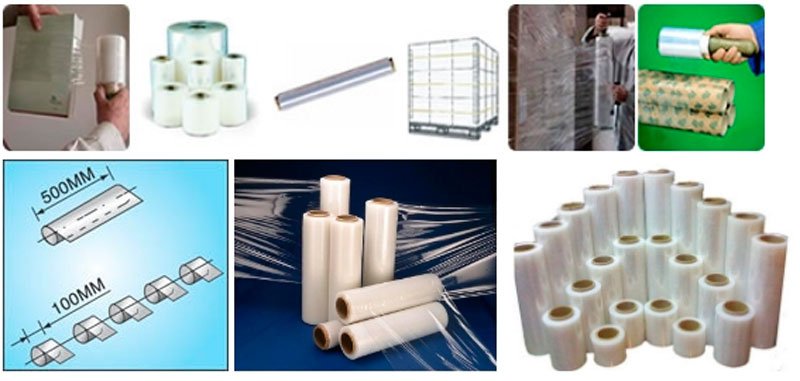

The stretch film produced by the film wrapping machine (also known as elastic film, stretched shrink film, self-adhesive film) is a soft film with high transparency and elasticity.

Stretch film machinery has high tensile strength, tear strength and good puncture resistance. Imported linear low-density polyethylene as the main raw material, a small amount of auxiliary materials are uniformly mixed, melted and plasticized by an extrusion system, and then made by a single layer, double layer or three-layer co-extrusion flow process through a machine head and a molding die. A new type of packaging material.

Single Layer Stretch Film Making Machine

Single Layer Stretch Film Making Machine

Optional Equipment:

1)Auto load

2)Auto dry hopper

3)Motorize net changer

4)Hydraulic net changer

5)glue pump

6.air compressor

7.Chiller

8.Waste film crush online

Main Technical Parameter

ModelKD-500x1KD-1000x1
MaterialLLDPE,LDPE,biodegradable material
Screw Diameterφ55mmΦ75mm
Film LayerOne layerOne layer
L/D Ratio Of Screw30:130:1
Speed of Screw10-120rpm10-120rpm
Film Width200-500mm1000mm(500*2rollers)
Film Thickness0.017-0.05mm0.017-0.05mm
Main Motor Power15kw30kw
Film ColorTransparent,Black,Red,White,blue…bag color changed by masterbatch
Max Output30-40kg80kg
Water Consumption0.5m3/h0.5m3/h
Machine Weight2.5T4.5T
Overall Dimensions(L*W*H)6000*1500*2500mm10000*4000*3000mm
Total Power45kw120kw
Power Voltage220V,380V,440V220V,380V,440V
Machine Working time24 hours*724 hours*7
Material Core Diameter76mm(3 inch)76mm(3 inch)
Warranty1 year1 year
Technical AssistanceEngineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Single Layer Stretch Film Making Machine

Single Layer Stretch Film Making Machine

Single Layer Stretch Film Making Machine

Single Layer Stretch Film Making Machine

Single Layer Stretch Film Making Machine

Our Main parts cooperator as following brand,but standard parts all made from China.

Single Layer Stretch Film Making Machine
