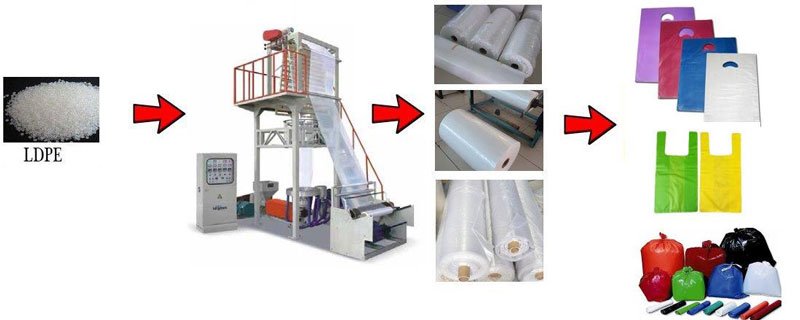

It is used to blowing polyethylene LDPE/HDPE, which has been widely used to produce film for packing film, clothing bag,rubbish bag and T-shirt bag,etc. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricby 30%.The screw and barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is big or small, it can achieve the best effect of cooling.
Optional Device:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
| Model | SJ-A50H | SJ-A55H | SJ-A60H | SJ-A65H |
| Usage | Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film | |||
| Diameter of screw | Φ50 | Φ55 | Φ60 | Φ65 |
| Mould size | HD: Φ60,LD: Φ150 | HD: Φ80,LD: Φ180 | HD: Φ100,LD: Φ220 | HD: Φ120,LD: Φ250 |
| Reduced diameter of film | 100-600 mm | 200-800 mm | 300-1000 mm | 400-1200 mm |
| One side film Thickness | HD:0.008-0.08mm,LD:0.02-0.1mm | |||
| Max.capacity (Kg/h) | 35-50kg/h | 40-70kg/h | 60-100kg/h | 80-120kg/h |
| Ratio of Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw material | 38CrMoAl | 38CrMoAl | 38CrMoAl | 38CrMoAl |
| Power of main motor(kw) | 15 | 18.5 | 30 | 37 |
| Power of Traction | 1.1 kw | 1.1 kw | 1.5 kw | 1.5 kw |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
| Delivery Day | 30-45 days | 30-45 days | 30-45 days | 30-45 days |
| Machine size (m) | 4.8x1.9x3.8 | 5.5x2.1x4.6 | 6.5x2.3x5.2 | 6.5x2.5x5.2 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) | |||
| Material Core Diameter | 76mm(3 inch) | |||
| Machine Working Time | 24 hours * 7 days | |||
| Warranty | 1 year | |||
| Optional Devices | Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder | |||
| Technical Assistance | Engineers available to service machinery overseas | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
All of our machines with 1 year guarantee.
Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).
Install machines in Saudi Arabia.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
