Optional Equipment:
1)Auto load
2)Auto dry hopper
3)Motorize net changer
4)Hydraulic net changer
5)glue pump
6.air compressor
7.Chiller
8.Waste film crush online
Main Technical Parameter
| Model | KD-500x2 | KD-1000x2 |
| Material | LLDPE,LDPE,biodegradable material | |
| Screw Diameter | φ55 x2 | Φ65x2 |
| Film Layer | two layers | two layers |
| L/D Ratio Of Screw | 30:1 | 30:1 |
| Speed of Screw | 10-120rpm | 10-120rpm |
| Film Width | 200-500mm | 1000mm(500*2rollers) |
| Film Thickness | 0.017-0.05mm | 0.017-0.05mm |
| Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | |
| Max Output | 40kg | 100kg |
| Water Consumption | 0.5m3/h | 0.5m3/h |
| Machine Weight | 3T | 8T |
| Overall Dimensions(L*W*H) | 6000*1500*2500mm | 10000*4000*3000mm |
| Power Voltage | 220V,380V,440V | 220V,380V,440V |
| Machine Working time | 24 hours*7 | 24 hours*7 |
| Material Core Diameter | 76mm(3 inch) | 76mm(3 inch) |
| Warranty | 1 year | 1 year |
| Technical Assistance | Engineers available to service machinery overseas | |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

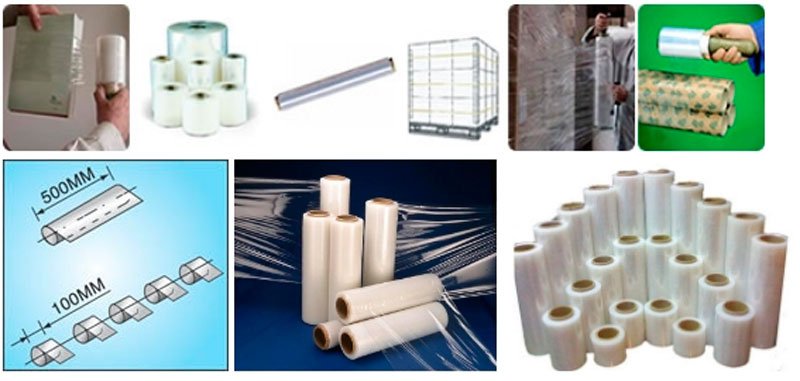

Stretch film machine also called Cast stretch film machine,machine use LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing,pallet packing,carton packing,building material packing, auto parts packing, hardware parts packing etc.
Stretch film machinery has good vertical and horizontal two-way cold stretching characteristics, and has a large retractability, long-lasting tightening force, single-sided or double-sided self-adhesive, and suitable breathable moisture permeability. Rely on its own stickiness.
Feature:
LLDPE,LDPE virgin raw material, recycled material,masterbatch and additives materia
inveter control film extruder speed,save power,ECO and save cost.
Film thickness 0.017mm-0.04mm
Film width 100mm-500mm
Film suit for Stretch film,pallet packing,carton packing,building material packing,auto parts packing,hardware packing,luggage wrap packing,
Screw material is 38CrMoAl,can use long time
Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
Machine with simple design,easy operate
Machine is economic design,suit for new beginer or starters
Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
We are welcomed customers Customized machines or OEM design.
Main Technical Parameter
| Item | KD-500*2 |
| material | LLDPE |
| Screw diameter(mm) | Φ55+Φ55 |
| L/D ratio of screw (L/D) | 30:1 |
| T-die Mould width (mm) | 650mm |
| Film width(mm) | 500mm |
| Thickness of finished products (mm) | 0.017-0.05 |
| Structure of film layers | A/B |
| Max output (kg/h) | 40 |
| Linear speed of machinery (m/min) | 10-120 |
| Total power (KW) | 50 |
| Overall dimensions (L*W*H)m | 6*1.5*2.5 |
| Weight (T)(About) | 3 |
| Film color | Transparent,Black,Red,White,blue…bag color changed by mastbatch |
| Power Voltage | 220V,380V,440V |
| Machine Working time | 24 hours*7 |
| Material Core Diamater | 76mm(3 inch) |
| Warranty | 1 year |
| Technical Assistance | Engineers available to service machinery overseas |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
