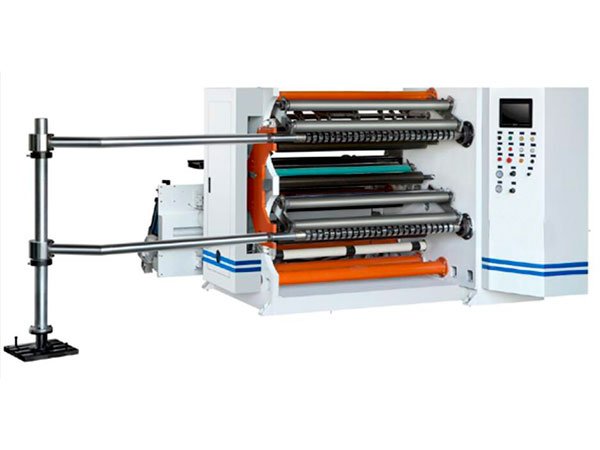

--2-1052.jpg)
Feature:
1.Change rewinding shaft automatic,decrease the stop time
2.Cutter positioning automatic
3.Automatic unloading system
4.Circle knife slitting mode
5. Expand roll
6.Dancing roll
7.6 inch rewinding mode
8.meter account stop
9.Easy tear on line
10.Air hole on line
11.Gap roll
12. Suit to paper,LDPE film,HDPE film,LLDPE film,BOPP film,PP film,PET film,
13. Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
14.Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
15.We are welcomed customers Customized machines or OEM design.
| Type | LFQ-E1300 | LFQ-E1500 |
| Max.Width of Mother Roll | 1300mm | 1500mm |
| Max.Diameter of Mother Roll | Φ800mm | Φ800mm |
| Thickness of material | 20-200μΜ | 20-200μΜ |
| Max. Rewinding diameter | Φ600mm | Φ600mm |
| Min. Width of Final Roll | 30mm | 30mm |
| Max.Slitting Speed (inverter control) | 300m/min | 300m/min |
| Max.Slitting Speed (servo motor control) | 500m/min | 500m/min |
| Material | Paper,HDPE, LDPE, LLDPE,PET,BOPP,OPP,CPP film | |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) | |
| Material Core Diameter | 76mm(3 inch) | |
| Machine Working Time | 24 hours * 7 days | |
| Warranty | 1 year | |
| Technical Assistance | Engineers available to service machinery overseas | |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

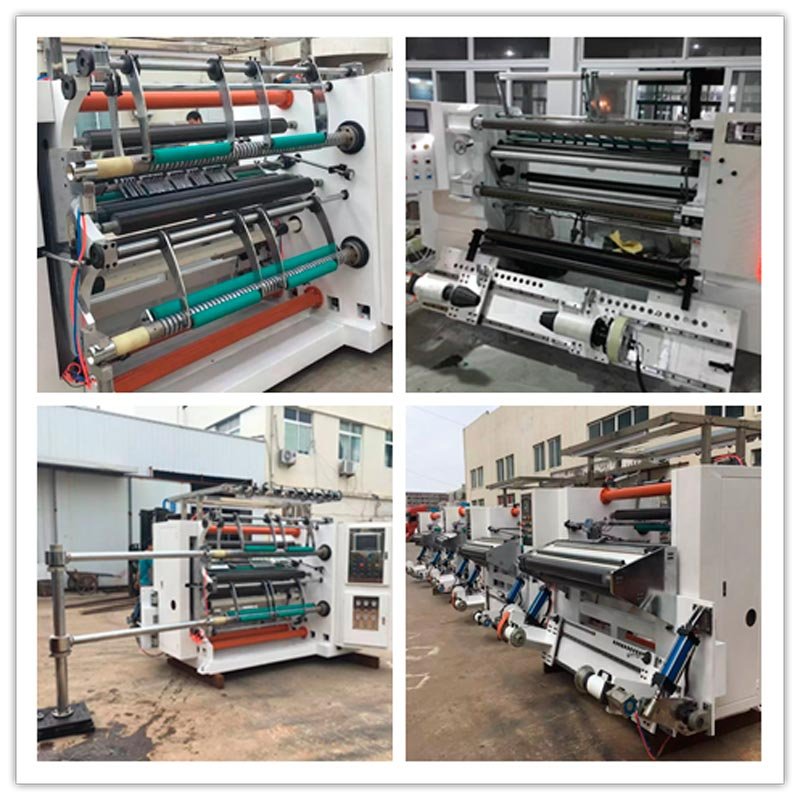

--4.jpg)
Our Main parts cooperator as following brand,but standard parts all made from China.
