Feature:

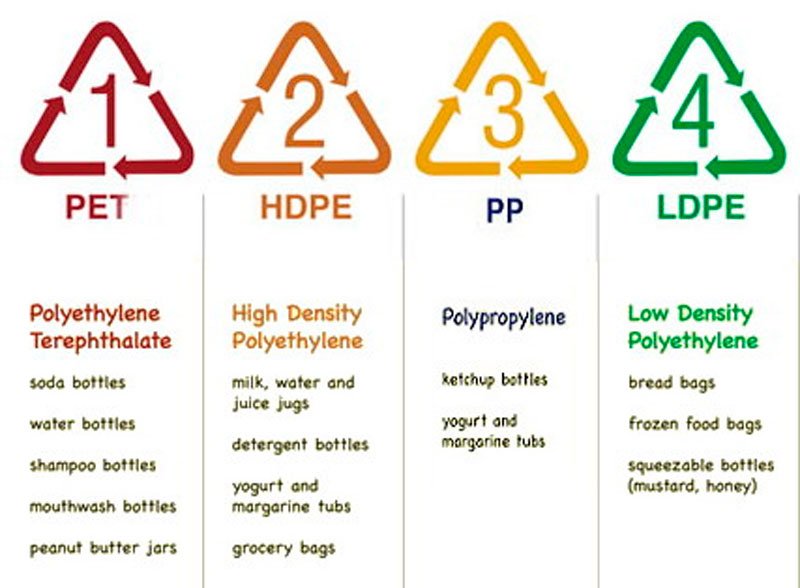

1.LDPE,HDPE,LLDPE,PP material

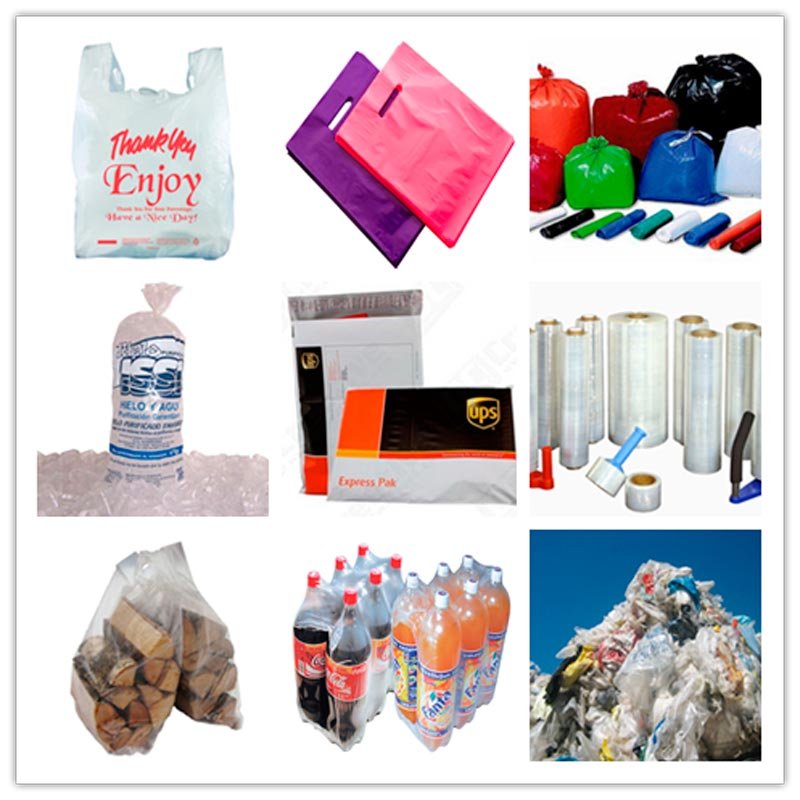

2.Material shapes: plastic film,plastic bag,plastic bottle and flake.
3.inverter control extruder speed,save power,ECO and save cost.

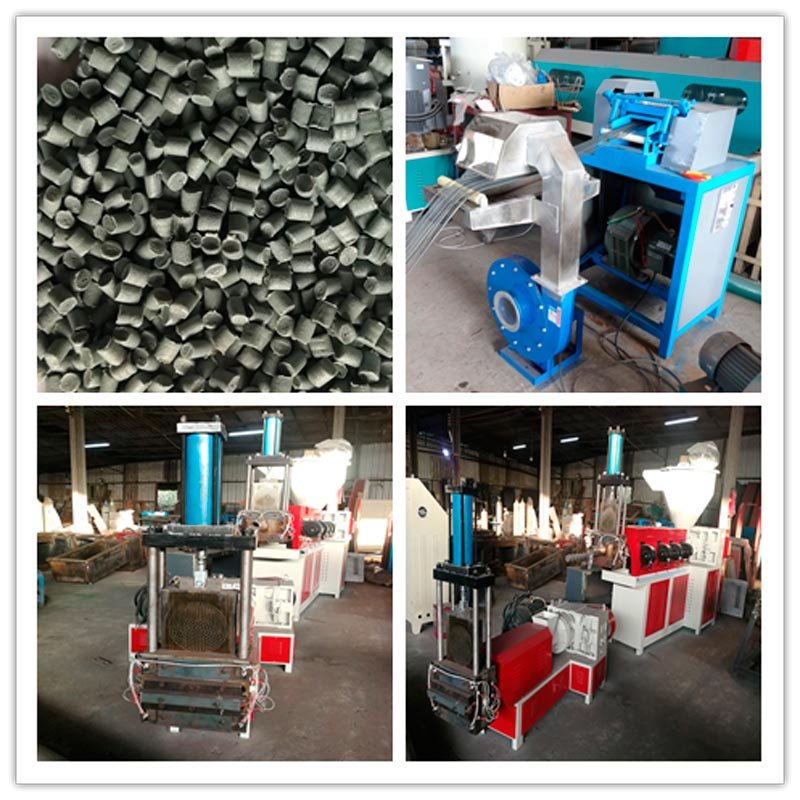

4.Two extruders,two filter device,pelletizing unit, wind cooling unit
5.Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
6.Machine with simple design,easy operate
7.Machine is economic design,suit for new beginner or starters
8.Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
9.Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
We are welcomed customers Customized machines or OEM design.
Main Technical Variables:
| Model | SJ-D135/110 | SJ-D 115/90 | |
| Screw Diameter | Main screw | 135mm | 115mm |
| Sub-screw | 110 | 90 | |
| L/D Ratio | Main-screw | 20:1 | 20:1 |
| Sub-screw | 12:1 | 12:1 | |
| Power of motor | Main screw | 37kw | 30kw |
| Sub-screw | 15kw | 11kw | |
| Speed of screw | 10-120r/min | 10-120r/min | |
| heating power | 60kw | 50kw | |
| Capacity | 150-200kg/h | 120-150kg/h | |
| Power of cutter | 3kw | 2.2kw | |
| Weight | 5000kg | 3000kg | |
| Dimensions | 6500×4000×1500mm | 6000×3500×1500mm | |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
