Features

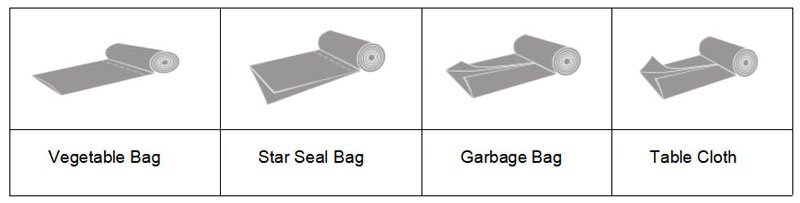

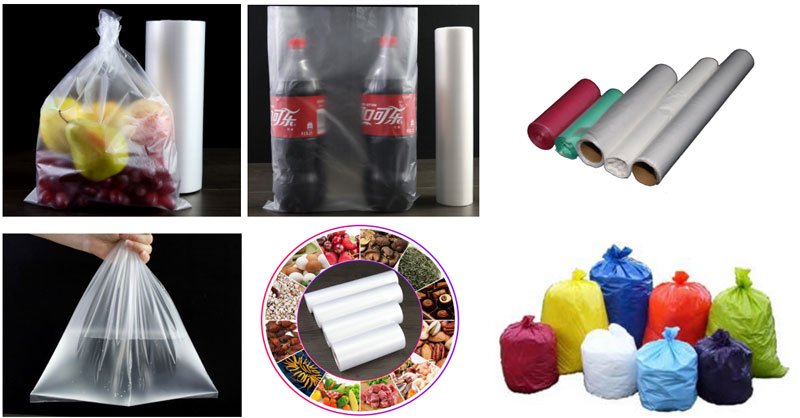

- Available produce double line "Star" sealing T-shirt bag,vegetable bag,table sheet cloth & garbage bag.
- Equipped with one printing photocell,can produce printed bag on roll.
- This model machine can produce 2 lines bag on roll at same time.
- Machine simple design,easy operate.
- This plastic bag machine will stop automatically and alarming when the printing photocell tracking fail.
Main Technical Variables:
| Model | KDB-500H |
| bag making speed | 30-190pcs/min |
| Length of bag making | 100-1200mm |
| Width of bag making | 60-300mm |
| Thickness of bag making | 0.005-0.015mm |
| Bag making methods | Flat open bag with core |
| Material feeding | AC motor with inverter control |
| Bag length control | Servo motor ,China brand 3kw |
| Main motor | 1.5kw with inverter control |
| Heating power | 2kw |
| Total power | 8kw |
| Machine size | 6000*1300*1800mm |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
