The paper bag process consists of roll discharge (hydraulic feeding, automatic correction, constant tension), puncture, middle (side) seam gluing, color code tracking, raw material into a cylinder, fixed-length pulling and breaking, bottom gluing, bottom folding, The bottom of the bag is formed and the finished bag is finished in one time This machine is easier to operate, more efficient, and more stable. It is an ideal equipment for producing various paper bags, bread bags, snack food bags, bread bags, dried fruit bags and other environmentally friendly paper bags.

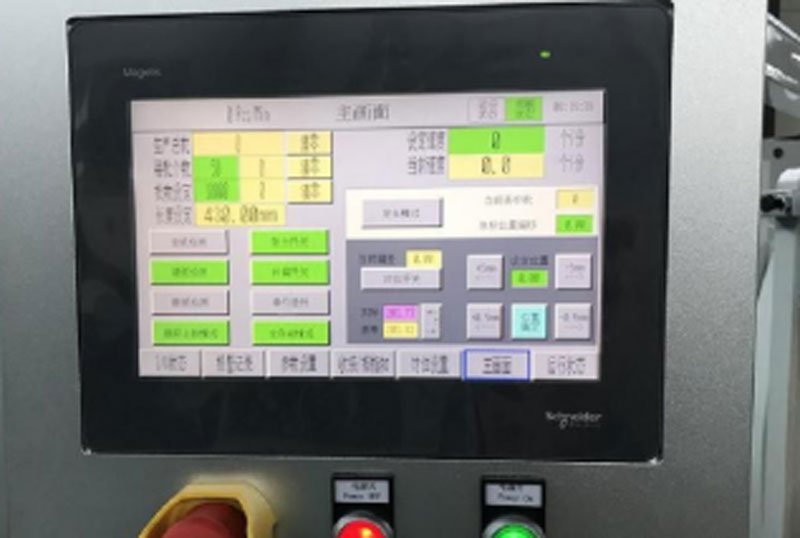

1. Using French SCHNEIDER touch screen man-machine interface, the operating functions are clear and easy to control.

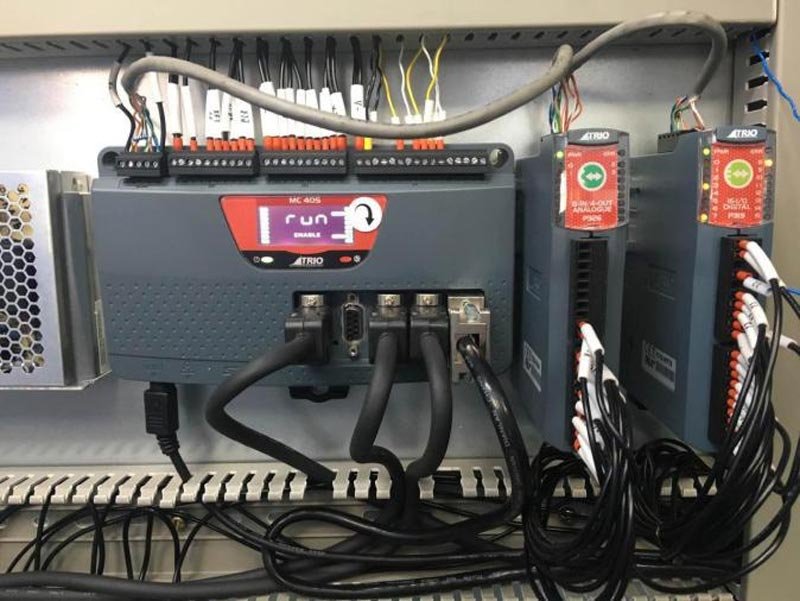

2.The French SCHNEIDER motion controller (PC) is used to ensure stable high-speed operation through the high-speed bus Ether CAT.

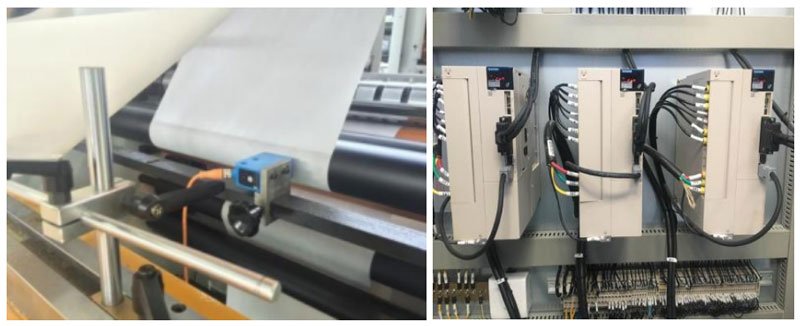

3.The original French SCHNEIDER servo motor is matched with the German original SICK photoelectric eye correction to accurately track the size of the printed bag.

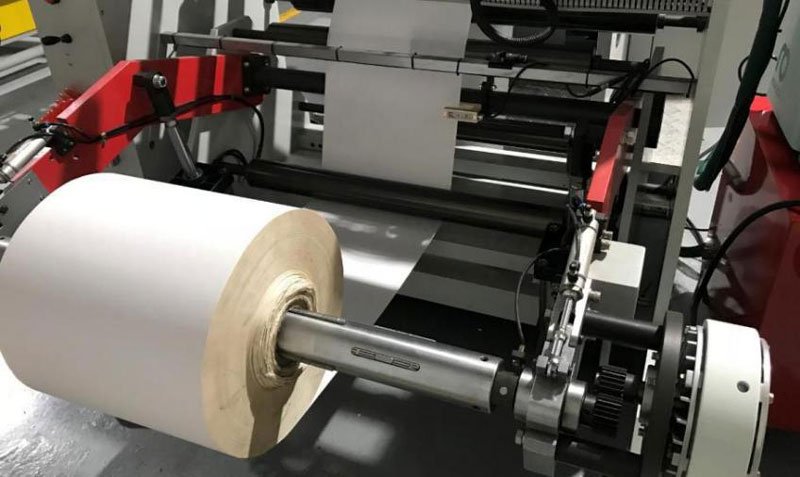

4.Material loading and unloading adopts hydraulic cylinder lifting structure, and unwinding adopt automatic constant tension control.

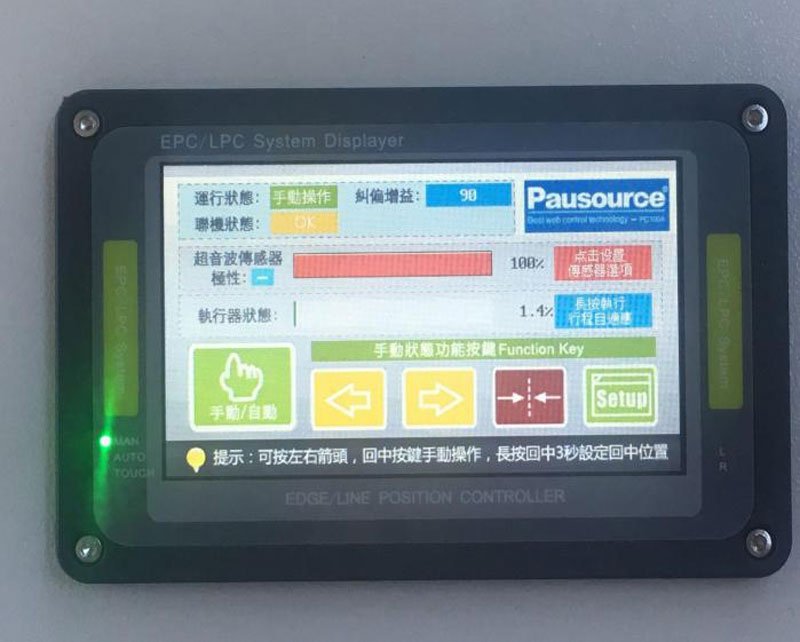

5.The rectification of raw materials adopts Italian SELECTRA, which reduces the time of roll registration adjustment

Note: The purchased parts used in this machine will be replaced by a brand of the same quality not less than the existing brand when the equipment is upgraded or updated. The Seller reserves the right without further notic.
