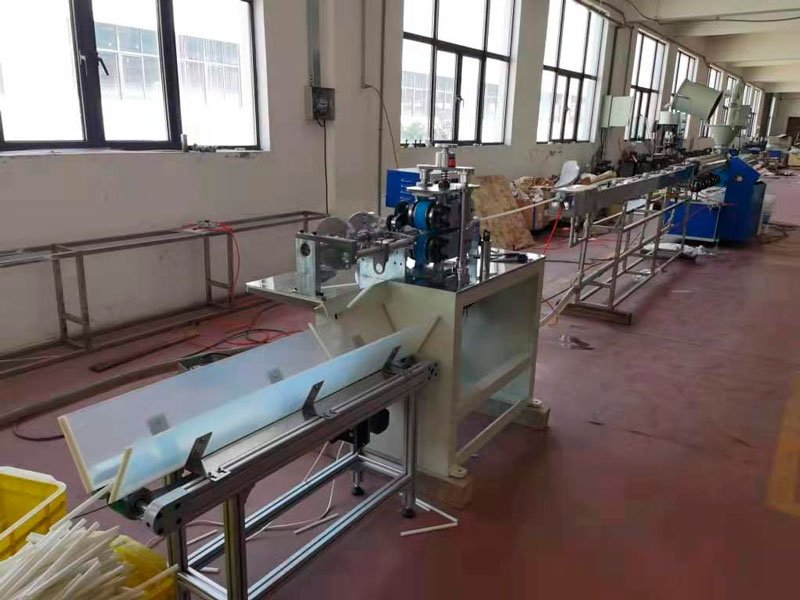

PLA drinking straw machine
PLA straw making machine is a special tube extrusion line, composed of PLA extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit.
| Model | KD-1-50 PLA |
| Material | Biodegradable PLA |
| Color | 1 color( or 2colors/3colors as requirement) |
| Screw dia | 50mm (BM Separate type + pineapple nail structure) |
| L/D | 33:1 |
| Barrel heater | 4 zones (each with Ammeter) |
| Heater | Nano energy-saving far infrared heating coil |
| Fan | constant temperature fan |
| Hopper | Drying hopper & Auto-loader |
| Motor for extruder | 22kw (servo motor) |
| Inverter | 22kw (Delta brand,Taiwan) |
| Gearbox | ZLY146 hardened face gear |
| Water storage tank | (length)4400 mm /Steel stainless(with 2~3 blowing devices) |
| Motor for traction | 0.75kW×1 control by inverter |
| Output | 30-50kg/hour |
| Straw dia. | Φ6mm Φ8mm Φ12mm |
| Product thickness | 0.1-0.35mm |
| Dimension | 8.5m×0.9m×1.6 m |
| Weight | 1900kgs |
| I-shape straw gathering device | |
| Power | 380v 50Hz |
Our Main parts cooperator as following brand,but standard parts all made from China.
